SignApp Express - Trigger function with Gpio module.

1. Open your SignApp Ex. program.

2. add a name and click Create playlist.

3. choose player model.

4. Choose the wanted template.

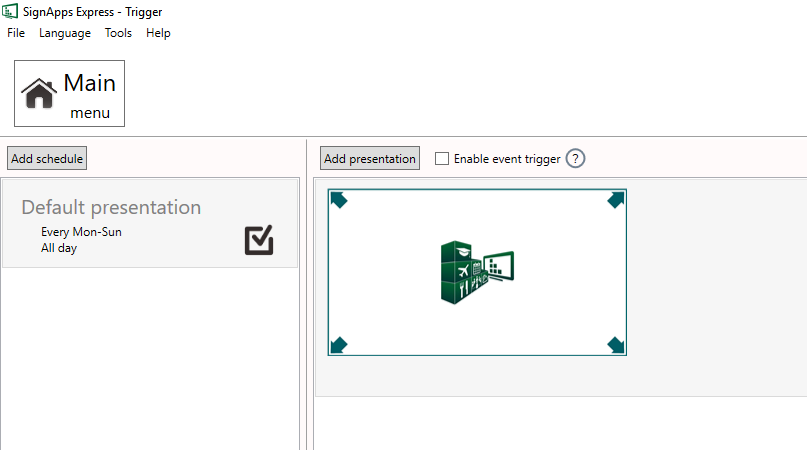

5. To add a trigger to a Schedule click edit schedule.

6. Default presentation is the default playlist there is running when there is no trigger action.

7. now add a new schedule by clicking add schedule and choose a name(f.e. trigger 1) now chose template for your new schedule.

8. mark trigger 1 and click the box (Enable event trigger). then click add trigger.

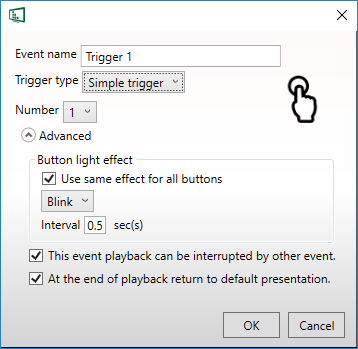

9. Give the trigger a name and then choose trigger port number you will use. then click Ok

10. Now you have added a trigger you just now need to add contents to the default schedule/trigger1 schedule and upload it to the player.

Attention. For this guide you need a GPIO module.
